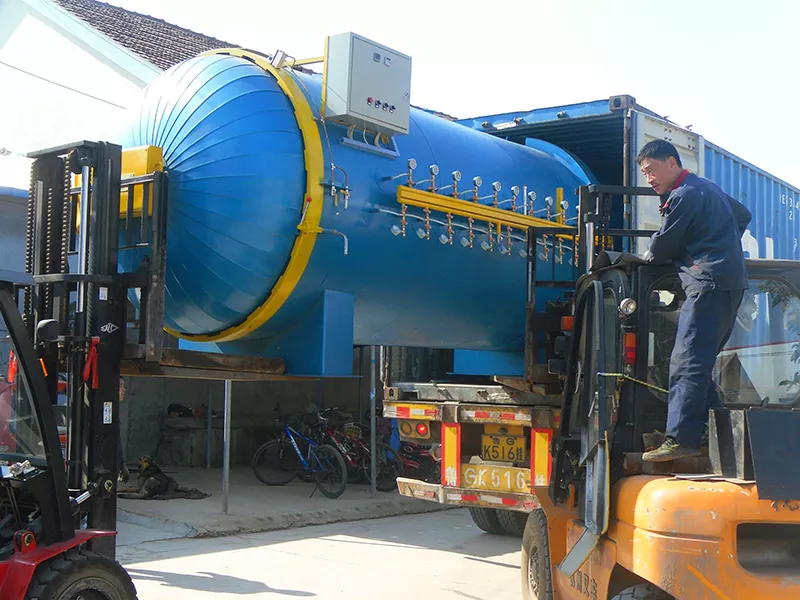

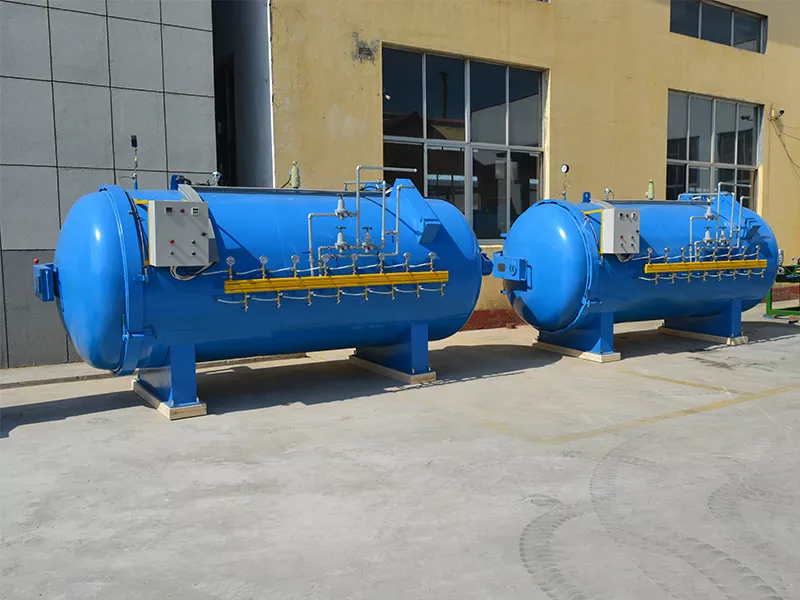

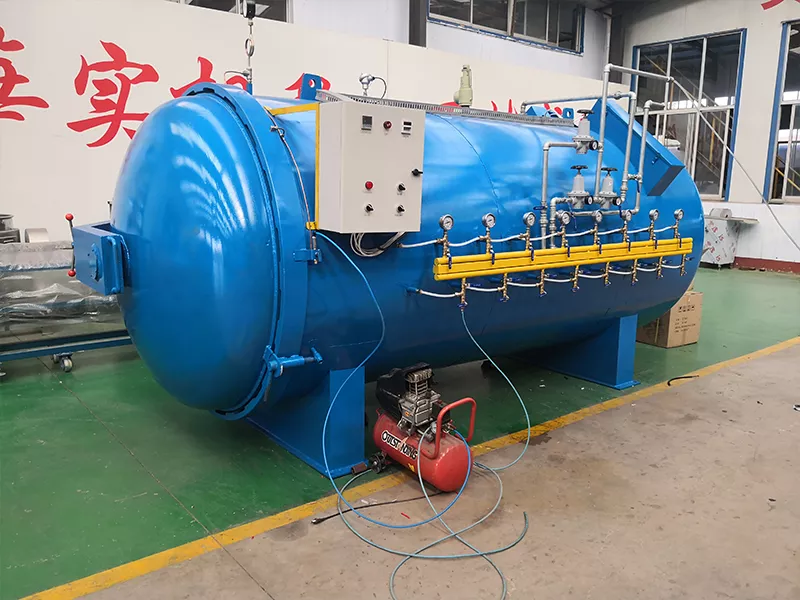

Retreading Vulcanizing Tank for Truck & Passenger Tires

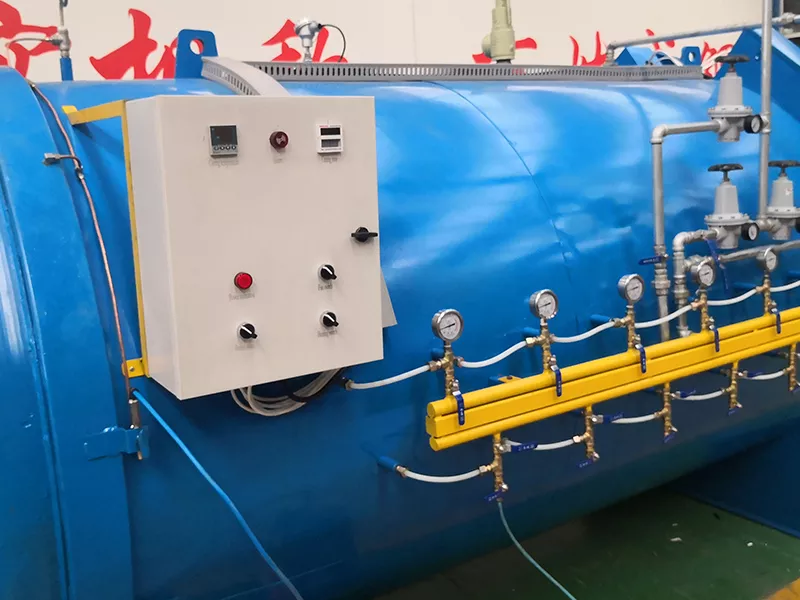

Our cold retreading vulcanizing tank is specially designed for the cold vulcanization process of truck tires, bus tires, and passenger car tires. Adopting advanced temperature and pressure control systems, it provides stable and uniform heating during the tire retreading process, ensuring strong bonding between rubber and tire casing.

This equipment features energy-saving design, low operating cost, and high reliability. It effectively extends tire service life, reduces rubber waste, and supports environmentally friendly tire recycling. With a sturdy structure, simple operation, and low maintenance, it is widely used in tire retreading factories, fleet maintenance centers, and rubber recycling enterprises around the world.

We provide customized tank sizes and configurations to meet different production capacities, helping customers achieve efficient, economical, and green tire retreading solutions.

Specification:

Temperature: 95-120 degrees

Pressure of vulcanized tank:0.5-0.8Mpa

Automatic set of pressure: 0.7-0.8Mpa

Envelope pressure: 0.4Mpa

Envelope working time: temperature to 100%, pressure 0.48Mpa automatically start.

1. Model:HG-6-tire (Include 6pcs vulcanizing rims)

2. Voltage:220V/380V

3. Power:51kw

4.Diameter:1500mm

5. Weight:5 tons

6. Curing time:2.6-3hour

7. Temperature:95-120℃

8. Pressure designed:0.85Mpa

9. Heating mode:Electric heating/ heat conducting oil heating/steam heating

10. Material:Carbon steel
